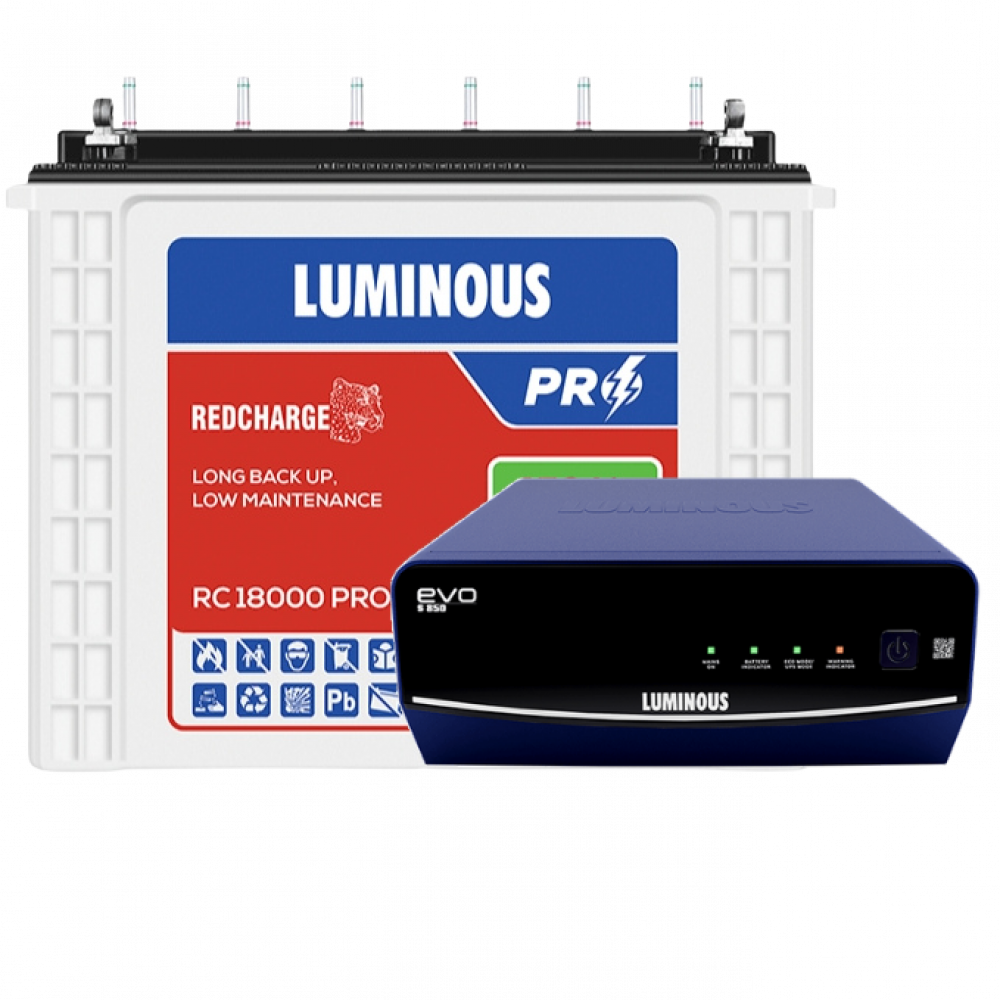

LUMINOUS Evo S 850 -700VA Pure SineWave Inverter + Redcharge RC 18000Pro-150Ah Tall Tubular Battery Description
LUMINOUS Evo S 850 – 700VA Pure Sine Wave Inverter paired with the Redcharge RC 18000Pro 150Ah Tall Tubular Battery is a reliable home power-backup combo designed for everyday appliances such as fans, LED bulbs, Wi-Fi routers, TVs and other essential loads. The inverter delivers 700VA capacity with approximately 560W usable output, while the 150Ah tall tubular battery provides dependable backup with good deep-discharge performance and long service life. This combination is suitable for homes, small offices, shops and areas experiencing frequent power cuts.

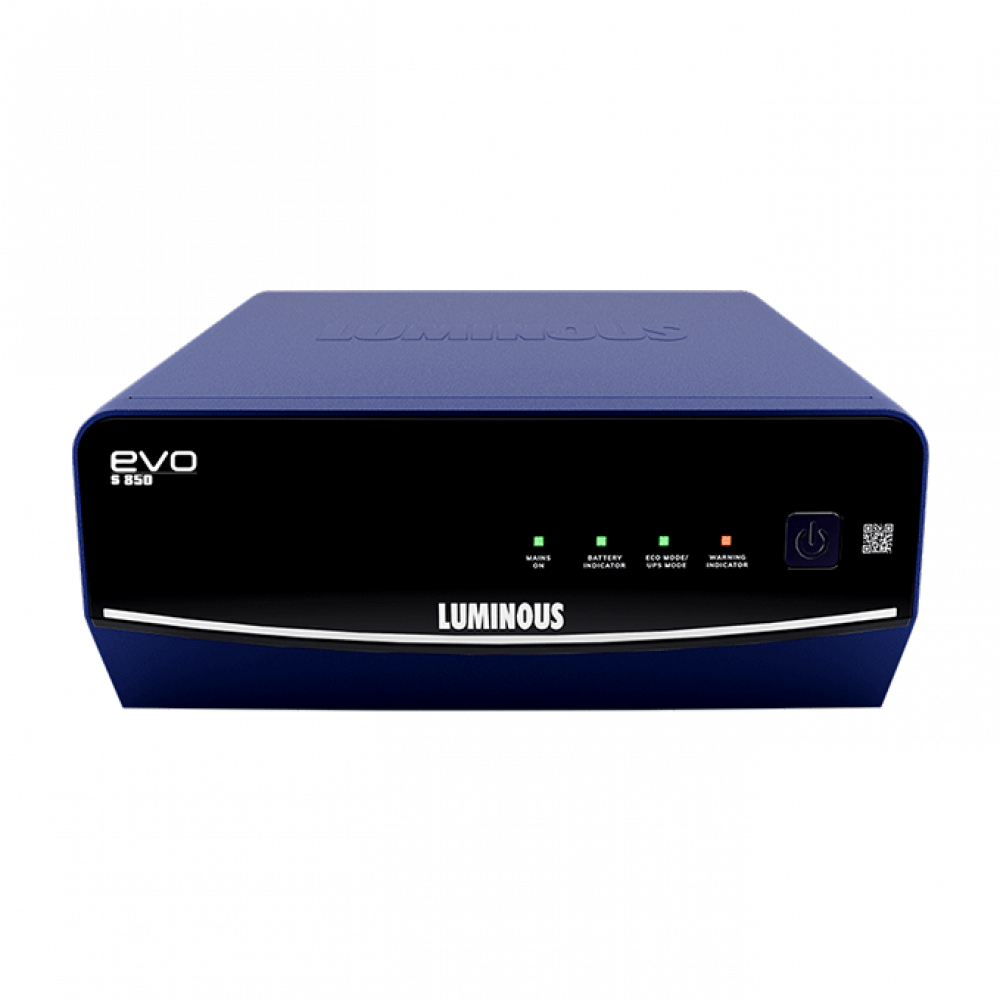

700VA Inverter Capacity – LUMINOUS Evo S 850 offers a 700VA rated capacity, suitable for running essential household loads during power cuts.
Approx. 560W Output – With a power factor of around 0.8, the inverter provides approximately 560 watts of usable output capacity.
Pure Sine Wave Output – Produces clean and stable power that is suitable for sensitive electronic appliances and regular household equipment.

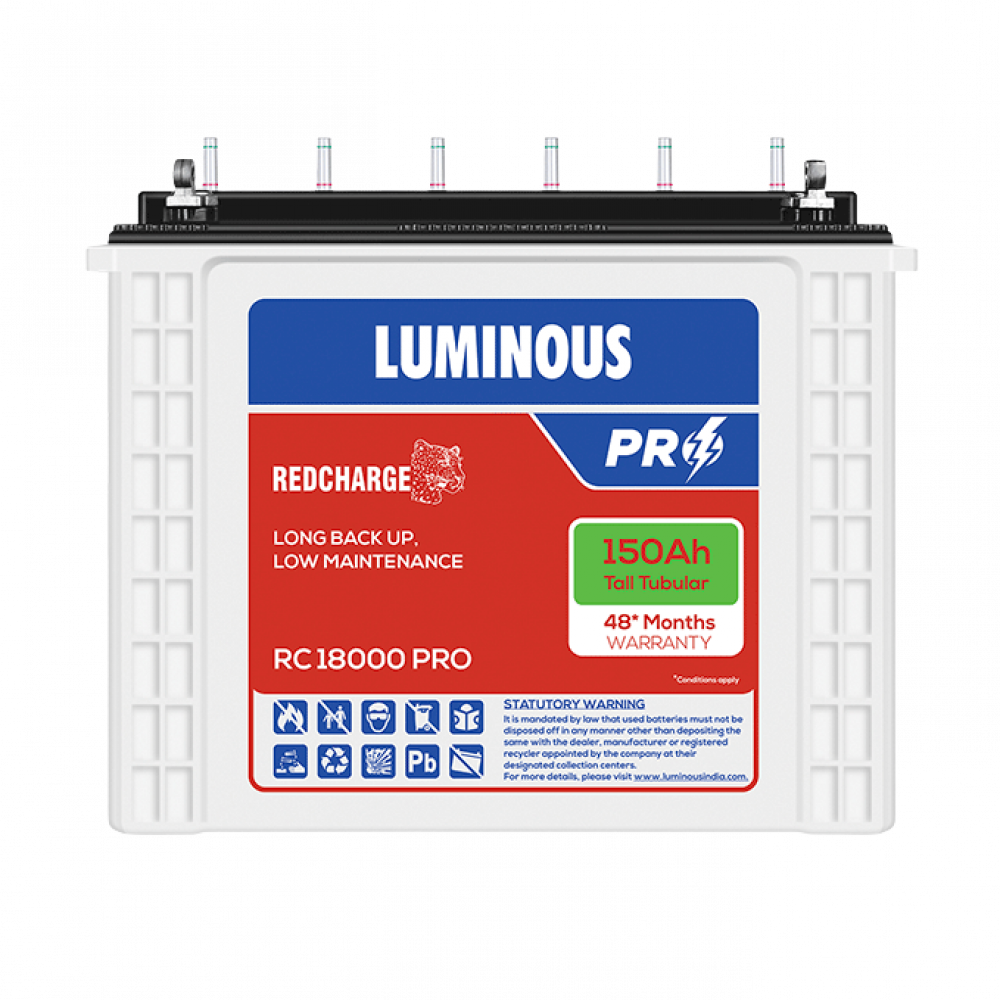

150Ah Tall Tubular Battery – The Redcharge RC 18000Pro features a 150Ah capacity, providing substantial energy storage for everyday backup requirements.
Tall Tubular Technology – Designed for frequent charging and discharging cycles, making it suitable for areas with regular power interruptions.
Reliable Home Backup – Ideal for essential loads such as fans, LED lights, TV, Wi-Fi router and other low-to-medium power appliances.
Long Backup Capability – The 150Ah battery offers considerably more backup potential than smaller-capacity batteries, depending on the connected load.
Efficient Charging – The inverter is designed to recharge the battery efficiently after mains power returns.
Battery-Friendly Operation – Intelligent charging and protection features help support battery performance and service life.
Home, Office & Shop Use – A practical combination for homes, small offices, shops and essential power-backup applications.
Backup & Load Guidance
Backup depends on the total wattage of appliances being used simultaneously. With a 150Ah battery, approximate backup can be:
Connected Load
Estimated Backup*
100W
~12–13 hours
200W
~6–7 hours
300W
~4–4.5 hours
400W
~3–3.5 hours
500W
~2.3–2.7 hours
Specifications of LUMINOUS Evo S 850 -700VA Pure SineWave Inverter + Redcharge RC 18000Pro-150Ah Tall Tubular Battery
Brand
LUMINOUS
Inverter Brand & Model
Evo S 850
Inverter Capacity
700VA / 560 Watt
Inverter Voltage
12V
Inverter Display
LED Display
Inverter Type
SineWave
Inverter Warranty
36 Months
Net weight
7.03 Kgs
Dimensions (mm)
275 x 220 x 115
Battery Brand & Model
LUMINOUS RC 18000 PRO
Battery Capacity
150AH
Battery Series
REDCHARGE
Battery Voltage
12 V
Battery Type
Tall Tubular
Battery Warranty
48 Months (24 Months Full Replacement + 24 Months Pro Rata)
Battery Dimensions(cm)
50.2x19.1x44
Net weight
52.5(±5% Kg)
In the Box
1 N X Evo S 850, 1 N X Redcharge RC 18000Pro
Country of Origin
India
Features:
700VA Pure Sine Wave Inverter – Delivers clean and stable power for everyday household appliances.
560W Active Power – Provides up to 560 watts of active output power, suitable for essential home loads.
150Ah Tall Tubular Battery – Redcharge RC 18000Pro 150Ah battery offers substantial energy storage for extended backup.
12V Battery System – The Luminous Evo S 850 operates with a 12V battery configuration.
Pure Sine Wave Technology – Provides smooth and consistent backup power, suitable for electronic and motor-based appliances.
ECO & UPS Modes – Choose between ECO mode for a wider mains voltage range and UPS mode for regulated input voltage.
Wide Input Voltage Range – Supports approximately 90–290V mains input in ECO mode.
Regulated UPS Mode – UPS mode operates with approximately 180–260V input regulation, suitable for appliances such as computers and TVs.
Fast Mains-to-Battery Transfer – Transfer time in UPS mode is less than 20 ms.
Battery Status Indicator – Multi-colour LED indicators show the approximate battery charge level.
Multiple Protection Features – Includes protection against overload, short circuit, low battery and reverse polarity.
