Microtek JUMBO JM SW 3000+ Home UPS (24V) + Lithium Battery 100Ah/25.6V Combo Description

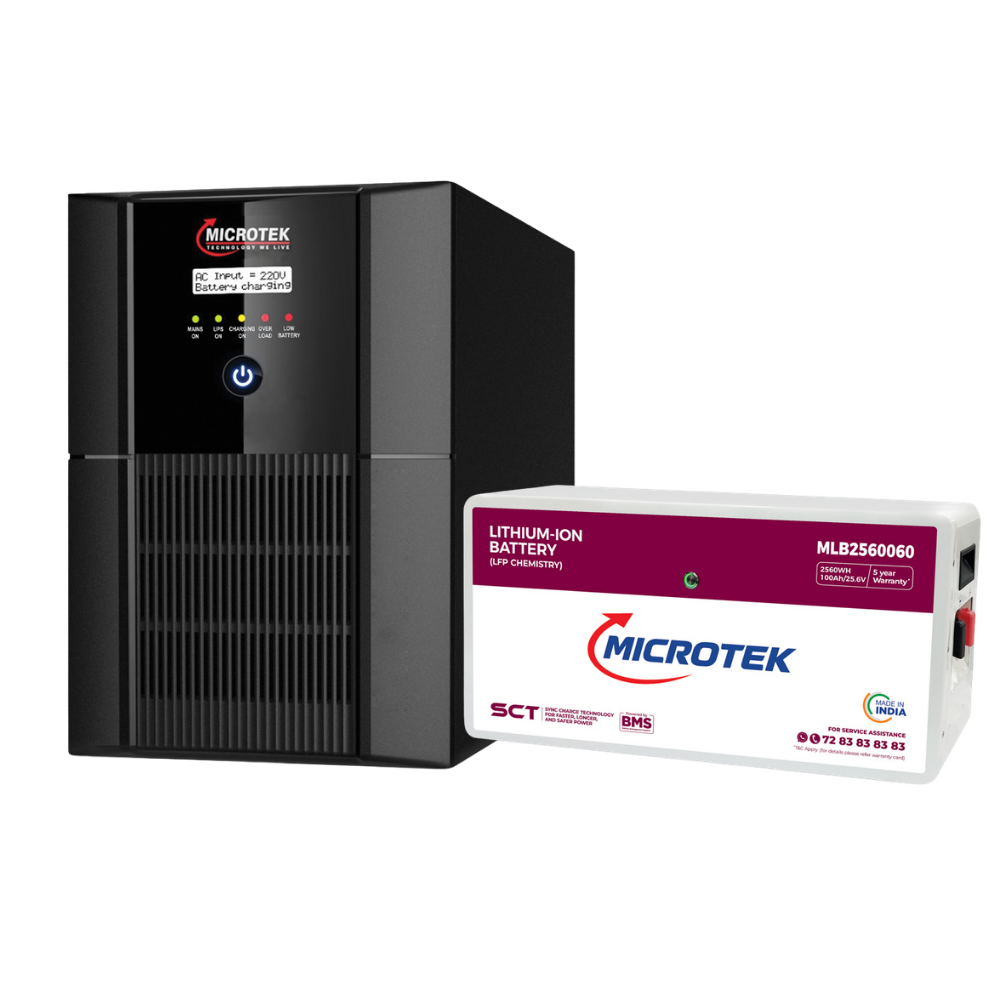

The Microtek JM SW 3000+ 2.5kVA / 2000W Pure Sine Wave UPS with Microtek 25.6V 100Ah LiFePO4 Lithium Battery is a powerful, reliable and maintenance-free power backup solution for homes, offices, shops, clinics and small commercial applications. This advanced Microtek lithium inverter combo combines a DSP-based intelligent pure sine wave UPS with a high-performance 2.56 kWh LiFePO4 lithium battery.
The Microtek JM SW 3000+ delivers up to 2000W output and uses pure sine wave technology to provide clean and stable backup power for computers, LED TVs, Wi-Fi routers, CCTV systems, fans, lights and other sensitive electronic equipment. Its wide input voltage range of 100V to 280V makes it suitable for areas with frequent voltage fluctuations.
The included Microtek 25.6V 100Ah LiFePO4 lithium battery uses advanced prismatic cells and a built-in Smart BMS for protection against overcharge, over-discharge, over-current, short circuit and temperature-related conditions. With 3500+ cycles at 80% DoD and a 10+ year design life, this maintenance-free lithium battery is designed for long-term power backup.
Unlike conventional flooded lead-acid inverter batteries, the lithium battery requires no regular water topping-up, helping reduce maintenance and making it a convenient choice for modern homes and offices. The battery supports up to 50A charging current, 100A continuous discharge and 250A peak discharge for 1.5 seconds, providing strong power delivery for demanding loads.
This Microtek 2.5kVA lithium inverter and 100Ah LiFePO4 battery combo is an excellent choice for customers looking for long-lasting, efficient, quiet and low-maintenance home or office power backup.
· 2.5kVA / 2000W Capacity – Microtek JM SW 3000+ provides up to 2000W power output for home and office backup applications.
· Pure Sine Wave Output – Delivers clean and stable power suitable for sensitive electronic appliances.
· 25.6V 100Ah LiFePO4 Battery – Comes with a high-performance Microtek lithium battery with 2.56 kWh nominal energy capacity.
· Long Cycle Life – Lithium battery is rated for 3500+ cycles at 80% DoD for long-term usage.
· 10+ Year Design Life – Designed to provide long-lasting performance under suitable operating conditions.
· 5-Year Battery Warranty – Microtek lithium battery comes with a 5-year warranty.
· Maintenance-Free Battery – No regular water topping-up or electrolyte maintenance required.
· Smart BMS Protection – Built-in Battery Management System protects against overcharge, over-discharge, over-current and short circuit.
· Wide Input Voltage Range – Supports 100V to 280V standard input voltage for better performance during voltage fluctuations.
· DSP-Based Intelligent Control – Advanced digital control technology helps manage UPS operation efficiently.
· Generator Compatible – Suitable for applications where generator power is also used.
· Multistage Battery Charging – Advanced PWM-based charging technology supports efficient battery charging.
· High Continuous Discharge – Lithium battery supports up to 100A continuous discharge.
· High Peak Discharge – Supports up to 250A peak discharge for 1.5 seconds for higher starting loads.
· Fast Charging Support – Battery supports standard charging of 20A and maximum charging current of up to 50A.
· Compact Lithium Battery – The 26.1 kg battery offers a compact alternative to many conventional lead-acid battery setups.
· Low Noise Operation – UPS acoustic noise is below 60 dB at 1 metre.
· Automatic Mains-to-UPS Switching – Automatically switches between mains and backup power.
· Overload Protection – Provides protection against excessive connected loads.
· Short Circuit Protection – Designed to protect the UPS system during short-circuit conditions.
· Low Battery Protection – Helps protect the lithium battery from excessive discharge.
· Reverse Battery Protection – Includes protection against incorrect battery connection.
· Reverse Phase Protection – Helps protect the system from reverse phase conditions.
· LCD/LED Display – Displays important operating information, battery status, load and fault conditions.
· PLPO Technology – Peak Load Peak Output technology helps manage appliances with higher starting power requirements.
· Suitable for Computers & Electronics – Pure sine wave output is suitable for computers, TVs, routers, CCTV and networking equipment.
· Ideal for Homes & Offices – Suitable for apartments, homes, small offices, shops, clinics and work-from-home setups.
· LiFePO4 Prismatic Cells – Uses lithium iron phosphate prismatic cell technology designed for safety and thermal stability.
· Wide Temperature Range – Battery supports charging from 0°C to 45°C and discharge from -20°C to 60°C.
· Complete Lithium Power Backup Solution – A combination of Microtek 2.5kVA pure sine wave UPS and 25.6V 100Ah LiFePO4 battery for reliable, long-lasting and low-maintenance backup power.
Specifications of Microtek JUMBO JM SW 3000+ Home UPS (24V) + Lithium Battery 100Ah/25.6V Combo
Safety Features (Inverter)
Low Battery Voltage, Battery Overcharge, Over Temp., Smart Overload Sense & Short Circuits / LCD Display
Microtek Lithium Battery 100Ah/25.6V
