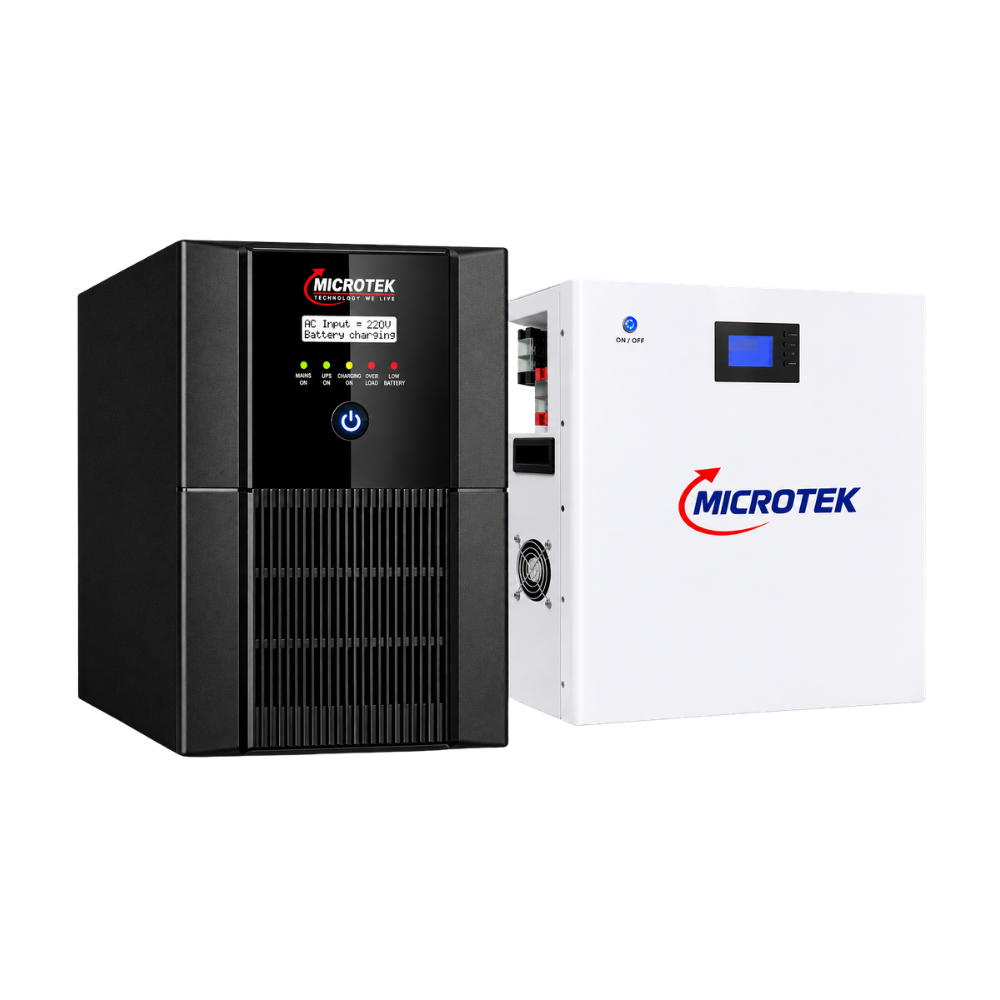

Microtek JUMBO JM SW 5500+ Home UPS (48V) + Lithium Battery 100Ah/51.2V Combo Description
The Microtek JUMBO JM SW 5500+/48V Home UPS with Microtek MLB5120060 51.2V 100Ah LiFePO4 Lithium Battery is a high-capacity power backup combination designed for homes, small offices, shops and other applications that require dependable backup power with modern lithium battery technology.
This powerful combination features the Microtek JUMBO JM SW 5500+/48V Home UPS, offering 5.2KVA / 4160W capacity, paired with the Microtek MLB5120060 51.2V 100Ah LiFePO4 Lithium Battery with 5.12kWh nominal energy capacity. The UPS uses advanced DSP-based intelligent control, MOSFET-based PWM technology, ACEC Pure Sinewave technology, intelligent multistage battery charging, PLPO peak-load technology and ASC system monitoring.
The Microtek MLB5120060 lithium battery uses advanced LiFePO4 (Lithium Iron Phosphate) chemistry and incorporates SCT SyncCharge Technology and Smart BMS protection. With a nominal voltage of 51.2V and 100Ah capacity, it provides 5.12kWh of nominal stored energy. The battery is designed to be maintenance-free and does not require regular water filling.
The JM SW 5500+ produces Pure Sinewave output during backup mode, making it suitable for compatible household appliances, computers, electronic equipment and other applications where clean and stable backup power is required. It also supports automatic mains-to-UPS and UPS-to-mains switching, generator compatibility, LCD/LED indications and multiple electrical protection features.
For customers looking for a high-capacity lithium inverter battery combo, this Microtek system offers the advantage of a powerful 5.2KVA / 4160W UPS, combined with a 5.12kWh LiFePO4 lithium battery, intelligent charging, Smart BMS protection and maintenance-free operation.
Powerful 5.2KVA / 4160W Home UPS
The Microtek JUMBO JM SW 5500+ provides a high 5.2KVA / 4160W rated capacity, making it suitable for higher-load home, office and commercial backup requirements.
48V High-Capacity UPS System
The JM SW 5500+ is a 48V Home UPS designed for high-capacity backup applications and compatible high-voltage battery configurations.
51.2V 100Ah LiFePO4 Lithium Battery
The combo includes the Microtek MLB5120060, a 51.2V/100Ah Lithium-Ion battery based on LiFePO4 chemistry for modern energy storage.
5.12kWh Nominal Battery Capacity
The 51.2V and 100Ah battery configuration provides 5.12kWh nominal energy capacity, making it suitable for substantial backup requirements.
Pure Sinewave Backup Output
The UPS provides Pure Sinewave output during backup mode, suitable for compatible home appliances, computers and electronic equipment.
Advanced DSP-Based Smart Control
The UPS uses DSP/high-end microcontroller-based PWM technology with MOSFETs, allowing advanced digital control of the system.
Up to 40 MIPS Digital Control
The internal digital frequency control operates at speeds of up to 40 MIPS, supporting precise electronic control of UPS operation.
ACEC Pure Sinewave Technology
The UPS incorporates ACEC (Analog Compare Error Correction) technology-based PWM for Pure Sinewave generation and waveform correction.
Intelligent Multi-Stage Charging
The system uses Boost-Based PWM Controlled Intelligent Multistage Battery Management Charging Technology for controlled battery charging.
Maximum 20A + 3A Charging Current
The specified maximum battery charging current is 20A + 3A, supporting efficient charging of the connected battery system.
SCT SyncCharge Technology
The MLB5120060 battery uses SCT SyncCharge Technology, which is designed to intelligently synchronize the charging process for improved charging efficiency and battery performance.
Smart BMS Protection
The lithium battery incorporates a Smart Battery Management System (BMS) to monitor battery conditions and provide multiple safety protections.
Overcharge Protection
The integrated BMS helps protect the lithium battery from excessive charging conditions.
Over-Discharge Protection
The BMS helps prevent the battery from being discharged beyond its supported operating range.
Over-Current Protection
The battery incorporates protection against excessive current conditions to improve operational safety.
Short-Circuit Protection
Smart BMS protection helps safeguard the battery during short-circuit conditions.
Temperature Protection
The battery management system provides protection against temperature-related operating conditions.
Maintenance-Free Lithium Battery
The MLB5120060 does not require regular distilled-water filling, making it more convenient to maintain than conventional flooded lead-acid batteries.
Wide 100V–280V Input Range
The JM SW 5500+ supports a standard input voltage range of 100V to 280V, helping the UPS operate across varying mains voltage conditions.
180V–260V Narrow Input Range
The UPS also supports a specified narrow input voltage range of 180V to 260V.
Automatic Mains-to-UPS Switching
The system automatically switches from mains operation to UPS backup when mains power fails.
Automatic UPS-to-Mains Switching
When mains supply returns, the UPS automatically switches back to mains operation.
Generator Compatible
The JM SW 5500+ is generator compatible, allowing it to be used as part of a suitable generator and battery backup system.
PLPO Peak Load Technology
PLPO (Peak Load Peak Output) is designed to provide high load-handling capability for compatible appliances and equipment.
ASC System Monitoring
ASC (Assessing System Configuration) technology checks critical system parameters before startup and continues monitoring important parameters during operation.
High Crest Factor Capability
The UPS is specified with a crest factor of up to 3.7, supporting compatible loads with higher peak-current requirements.
LCD/LED Display
The UPS provides LCD/LED indications for system status, faults, load and battery information.
Multiple Safety Protections
The UPS provides wiring fault, overload, short-circuit, low-battery, reverse-phase and reverse-battery protection.
Auto Reset Feature
The system includes an Auto Reset feature for supported operating conditions.
Battery Selection Mode
The UPS includes a Battery Selection Mode Switch that supports Tubular, Standard,Lithium and Local Battery selections.
Bypass Switch
A Rotary/Rocker Mains-to-Bypass Switch is provided for bypass operation when required.
More Than 80% Efficiency
The JM SW 5500+ has a specified efficiency of more than 80%, helping limit energy losses during operation.
Input Power Factor 0.85
The UPS has a specified 0.85 input power factor, supporting efficient utilization of incoming electrical power.
UPS Overload Protection
The specified UPS overload level is 108% of rated capacity, with overload protection incorporated into the system.
Low-Noise Performance
The UPS is designed for noise-free performance, with specified acoustic noise of less than 60dB at 1 metre.
Integrated Cooling System
The UPS uses fan and heat-sink based thermal management to help control operating temperature.
0°C–45°C Operating Temperature
The specified operating temperature range of the UPS is 0°C to 45°C.
Up to 95% Non-Condensing Humidity
The UPS supports a maximum relative humidity of 95% non-condensing, according to the manufacturer's specifications.
Suitable for Computer Applications
The UPS is designed to be useful for compatible computer-based applications, providing Pure Sinewave backup power.
Suitable for Music & Medical Applications
Microtek specifies the UPS as useful for compatible music studio and medical applications, subject to the electrical requirements of the connected equipment.
Long-Life Lithium Technology
The LiFePO4 battery is designed for long-life operation and repeated backup use.
Fast Charging Support
The MLB5120060 supports fast charging, combined with SCT SyncCharge Technology for intelligent charging management.
High-Efficiency Lithium Storage
The lithium battery provides a modern high-capacity energy-storage solution with 51.2V/100Ah configuration and 5.12kWh nominal energy.
Professional Installation Recommended
Microtek recommends professional installation for the lithium battery system.
Dry & Ventilated Installation
The lithium battery should be installed in a dry and ventilated location and protected from physical damage.
5-Year Lithium Battery Warranty
The Microtek MLB5120060 comes with a 5-year warranty, subject to the manufacturer's applicable warranty terms.
