Product Description

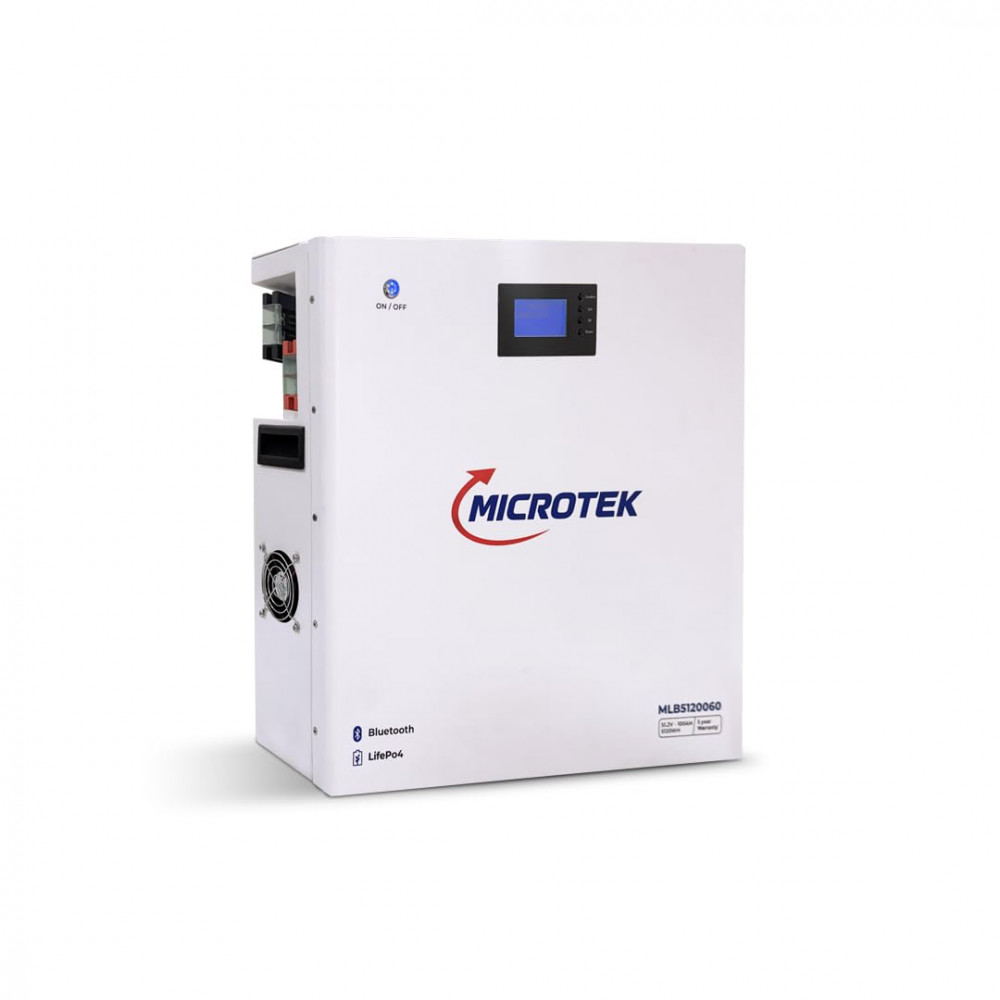

The Microtek MLB5120060 is an advanced Lithium Iron Phosphate (LiFePO4) battery built to deliver stable, safe, and long-lasting power backup for your home, office, or shop. Compared to traditional lead-acid batteries, it's lighter, more compact, charges faster, and requires no regular maintenance (no water top-ups needed).
Its Smart BMS (Battery Management System) continuously monitors voltage, current, and temperature, protecting the battery against overcharging, over-discharging, short circuits, and overheating. SCT SyncCharge Technology intelligently manages the charging process, improving both charging speed and overall battery performance.
With Bluetooth connectivity, you can monitor the battery's health and status right from your phone. The LCD display shows SOC (State of Charge), alarm, and ON status at a glance. This battery is fully compatible with high-capacity inverter/UPS systems and solar setups, and up to 16 units can be connected in parallel to scale up capacity.
Key Features
LiFePO4 Chemistry – Safer, more stable, and longer-lasting than lead-acid
Compact Size & Less Weight – Easy to install and handle
Fast Charging – Reaches full charge quickly
Smart BMS Protection – Over-voltage, under-voltage, over-temperature, short-circuit, over-charge, over-discharge, and MCB protection
Bluetooth Enabled – Real-time monitoring via mobile app
Perfect Compatibility – Works seamlessly with high-capacity inverter/UPS and solar systems
Easy Installation – Wall-mount design with a simple mounting plate system
Longer Life – 3500+ charge cycles (90% DOD @25°C)
LCD Screen – SOC/ALM/ON status indicators
Scalable – Up to 16 units can be connected in parallel (standard)

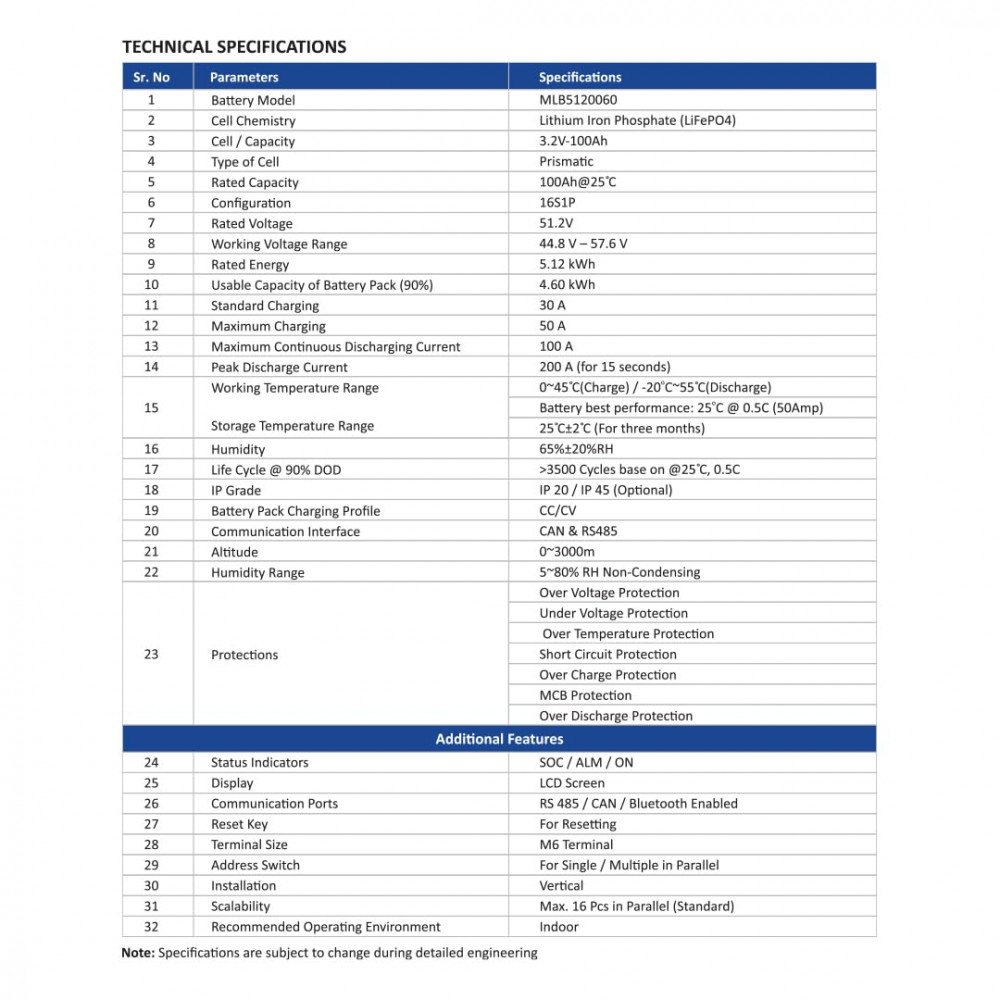

| Parameter | Specification |
|---|---|
| Battery Model :: | MLB5120060 |
| Cell Chemistry :: | Lithium Iron Phosphate (LiFePO4) |
| Cell / Capacity :: | 3.2V – 100Ah |
| Type of Cell :: | Prismatic |
| Rated Capacity :: | 100Ah @ 25°C |
| Configuration :: | 16S1P |
| Rated Voltage :: | 51.2V |
| Working Voltage Range :: | 44.8V – 57.6V |
| Rated Energy :: | 5.12 kWh |
| Usable Capacity (90%) :: | 4.60 kWh |
| Standard Charging :: | 30A |
| Maximum Charging :: | 50A |
| Max. Continuous Discharge Current :: | 100A |
| Peak Discharge Current :: | 200A (for 15 seconds) |
| Working Temp. Range :: | 0–45°C (Charge) / -20°C–55°C (Discharge) |
| Storage Temp. Range :: | 25°C ± 2°C (up to 3 months) |
| Humidity :: | 65% ± 20% RH |
| Life Cycle @ 90% DOD :: | 3500+ Cycles (@25°C, 0.5C) |
| IP Grade :: | IP 20 / IP 45 (Optional) |
| Charging Profile :: | CC/CV |
| Communication Interface :: | CAN & RS485 |
| Altitude :: | 0–3000m |
| Status Indicators :: | SOC / ALM / ON |
| Display :: | LCD Screen |
| Communication Ports :: | RS485 / CAN / Bluetooth |
| Terminal Size :: | M6 |
| Installation :: | Vertical, Wall-Mounted |
| Scalability :: | Max. 16 Pcs Parallel (Standard) |
| Recommended Environment :: | Indoor |
| Weight :: | 55 kg |
| Dimensions (L×W×H) :: | 65 x 46 x 18 cm |
| Warranty :: | 5 Years |

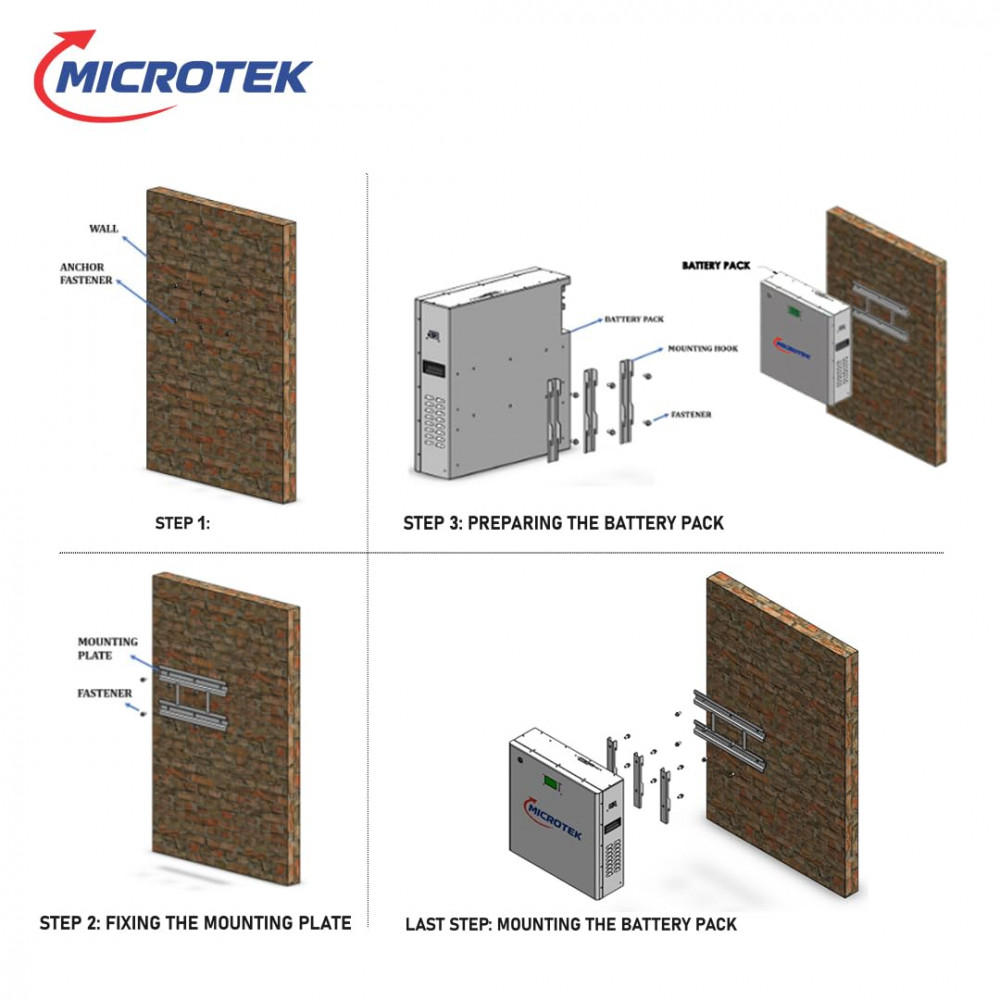

Installation & Mounting
This battery is designed for vertical, wall-mounted installation:

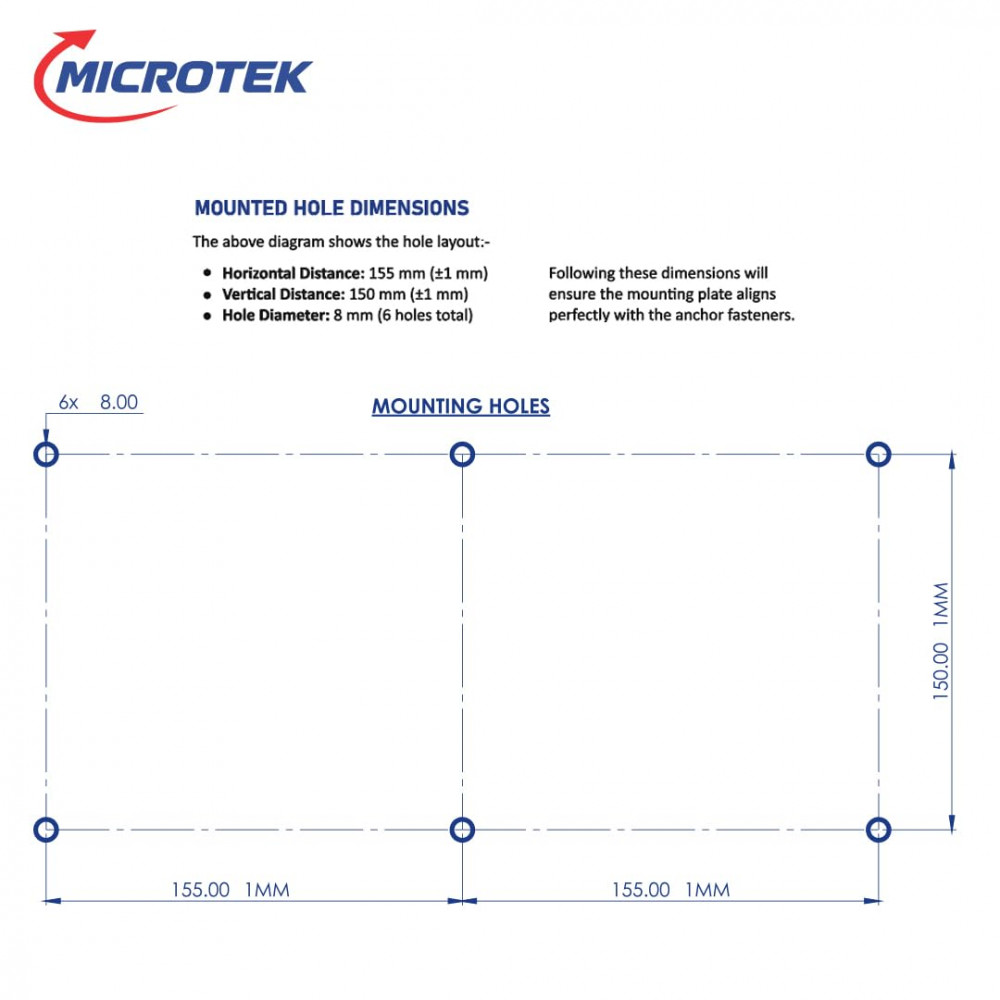

Mounting Hole Dimensions: Horizontal distance 155mm (±1mm), Vertical distance 150mm (±1mm), 6 holes total (8mm diameter) — ensures perfect alignment with the anchor fasteners.
Box Contains
1 × Microtek MLB5120060 Lithium Battery
User Manual
Warranty Card
Ideal For
Home backup, office backup, shops, solar power storage, and high-capacity inverter/UPS systems.
Care Instructions
Keep the battery in a dry, ventilated area and protect it from physical damage. No regular maintenance (like water filling) is required. Professional installation is recommended.
